Great Western Railway Dean Era Coaches

C1

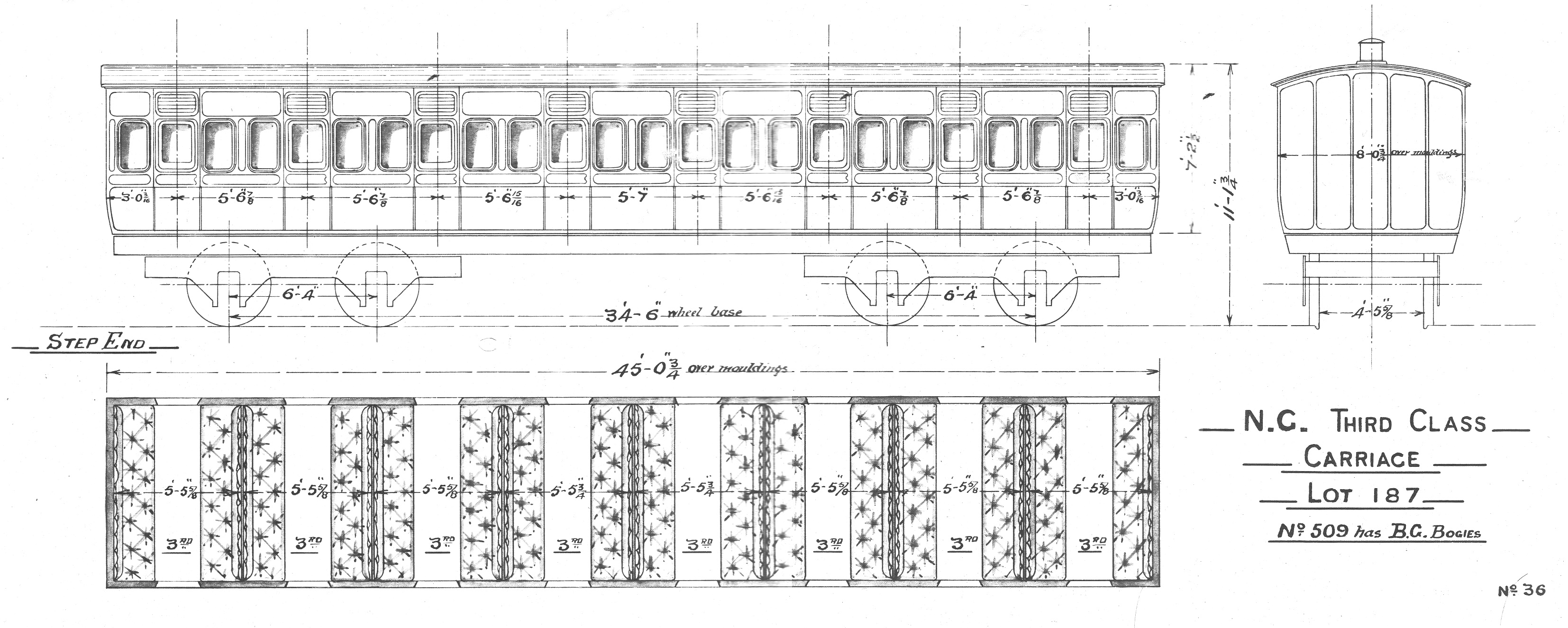

C1 - 3rd Class Carriage Lot 187
C2
C2 - 3rd Class Carriage Lot 207
C3
C3 - 8 wheeled 3rd Class Carriage Lot 448, 468, 472, 482, 484, 555, 558, 572, 612, 631, 659 & 671. Note that the last 5 lots had a different roof profile.
C4
C4 - 3rd Class Carriage Lot 524
C5
C5 - 3rd Class Carriage Lot 545
C6
C6 - 2nd Class & Luggage Bay Window Corridor Carriage Lot 552
71
C7 - 3rd Class Bay Window Corridor Carriage Lot 553
C7orig
C7 - 3rd Class Bay Window Corridor Carriage Lot 553 as originally built with side corridor
C8

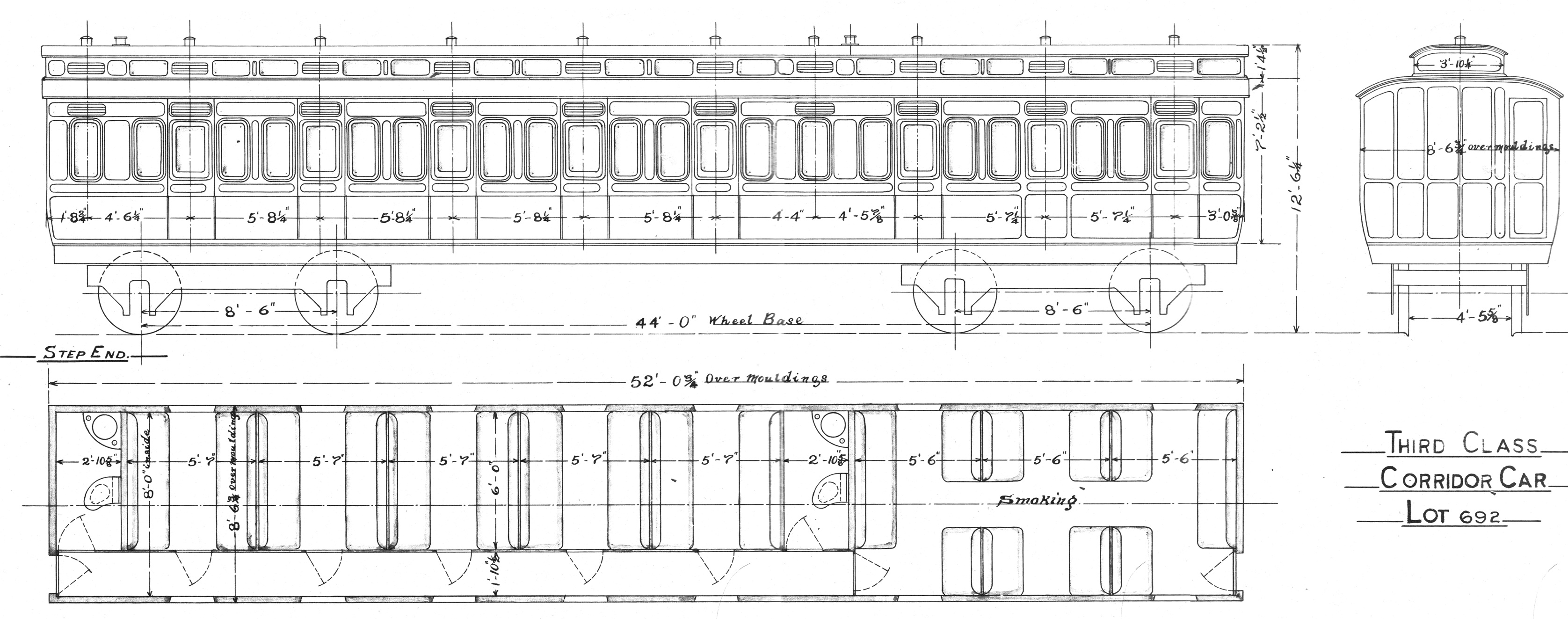

C8 - 3rd Class Corridor Carriage Lot 692 as originally built with side corridor
C11
C9 - 2nd Class Carriage Lot 694
C11

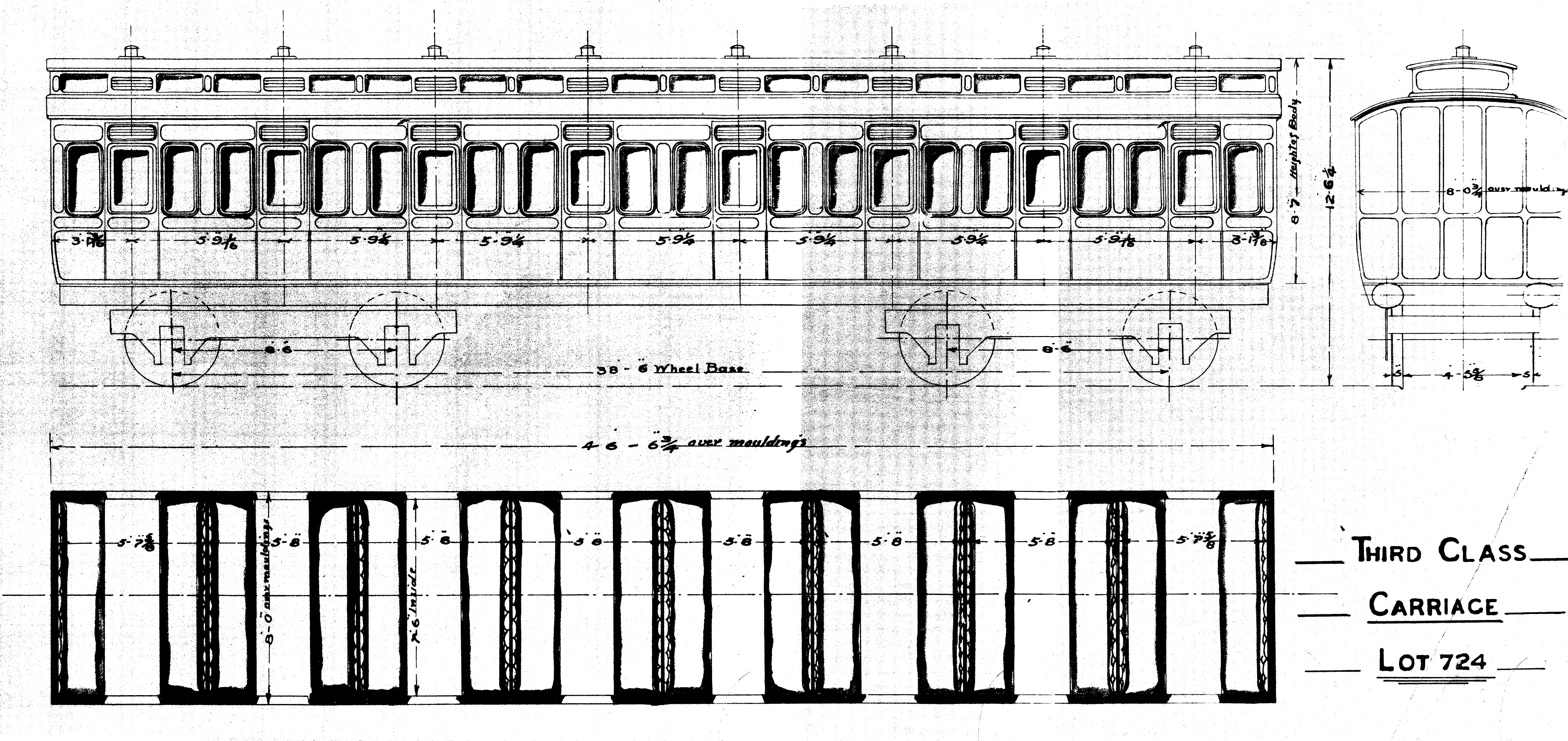

C10 - 3rd Class Carriage Lot 724
C11-1
C11 - 2nd & 3rd Class Carriage Lot 669 & 672.
C11-2
C11 - 3rd Class Carriage Lot 669 & 747. Formerly number (7)1595 & (7)1600 2nd/3rd Composite
C12

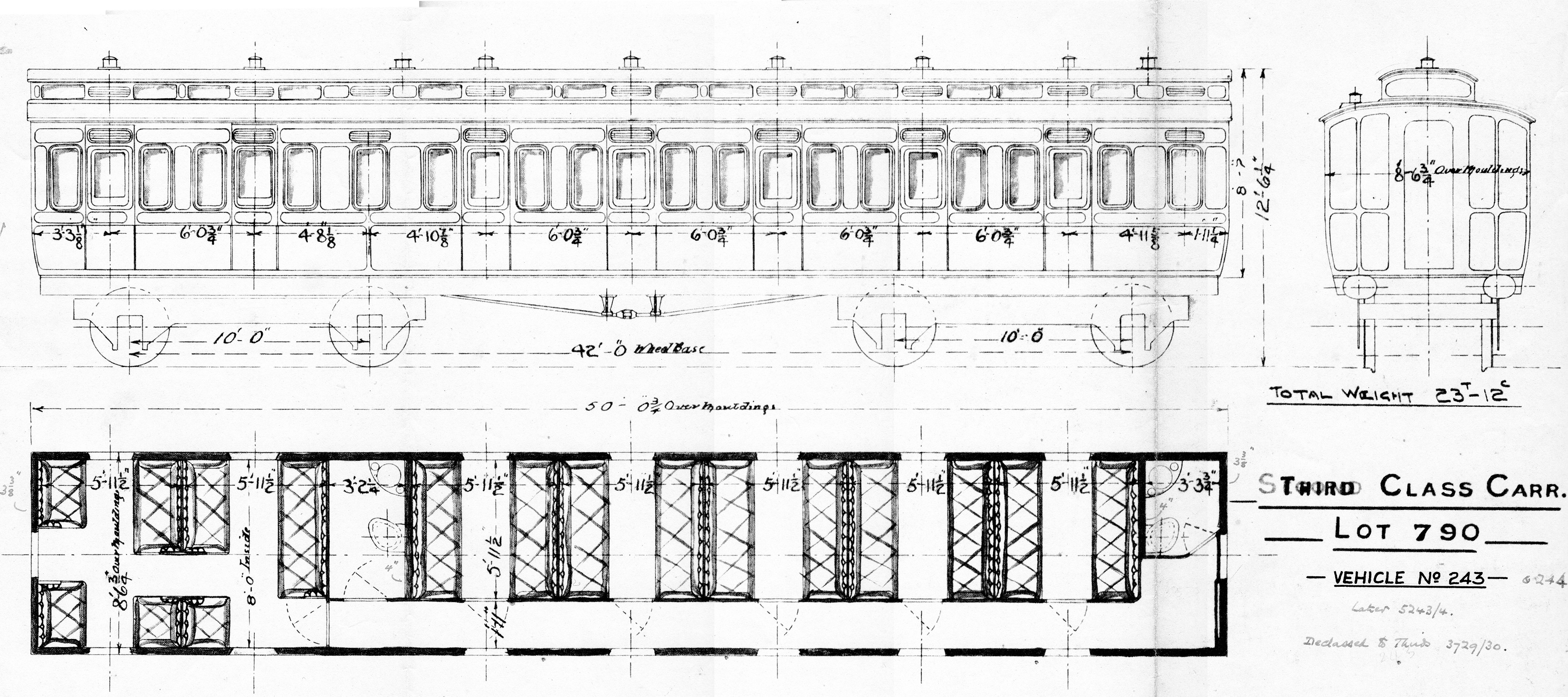

C12 - Second Class Carrriage Lot 790 Vehicle No.243 & 244 later 5243/4. Declassified to Thirds 2729/30
C13

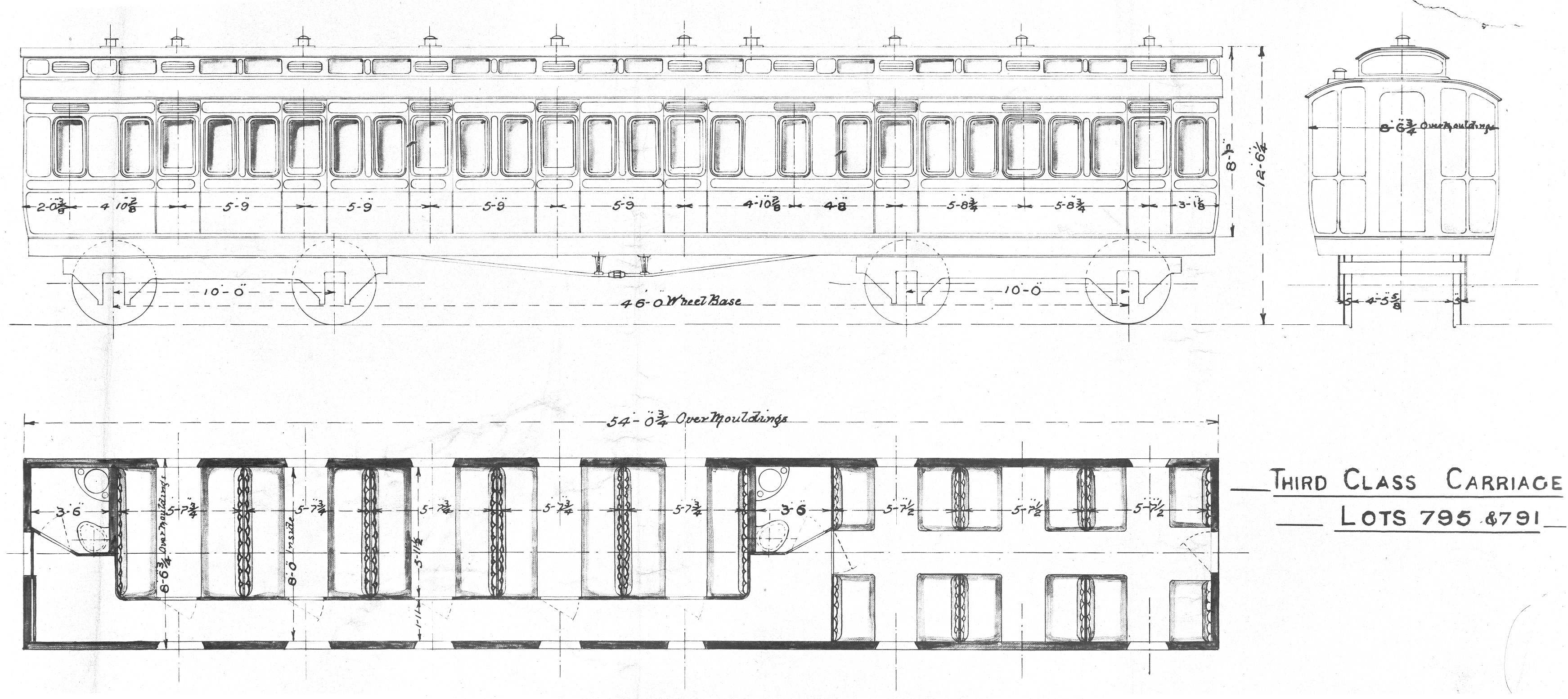

C13 - Third Class Carrriage Lots 795 (South Wales Corridor sets) & 791 (Ocean Specials)
C14
C14 - Second & Third Class Composite Carrriage Lot 846
C15

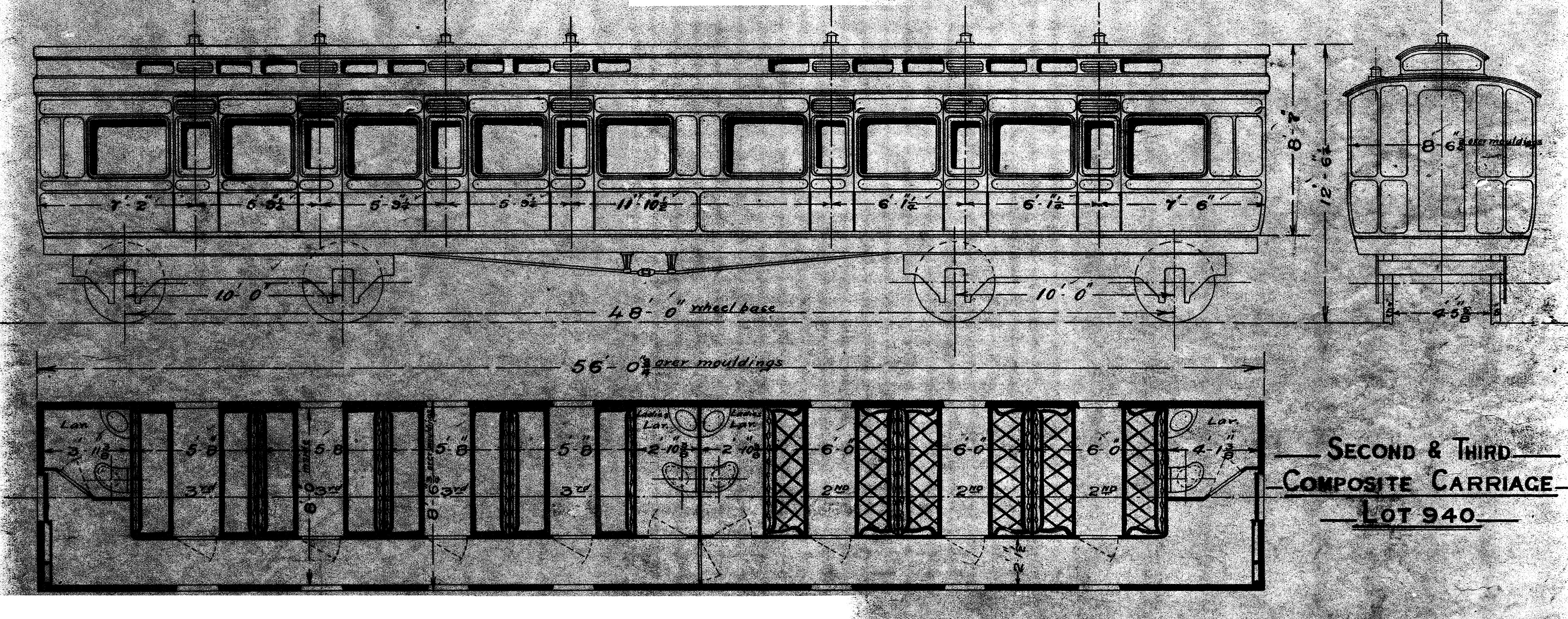

C15 - Second & Third Class Composite Carrriage Lot 940
also lot 867. Both converted to C16 by combining central toilets into a compartment.
C17
C17 - Third Class Carrriage Lot 905, 912, 927, 933, 999, 1020
C18

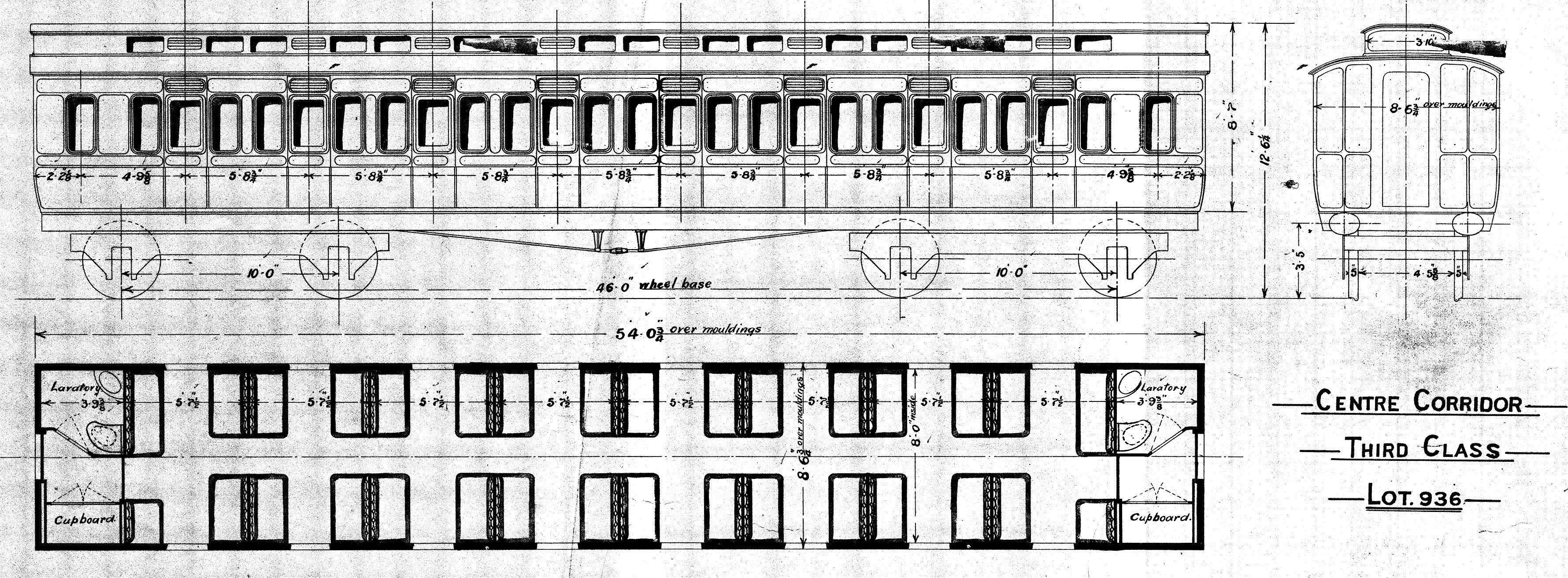

C18 - Centre Corridor Third Class Lot 936
C19
C19 - Second Class Carriage
Lots 970, 971 & 981
C17
C20 - Third Class Carriage Lot 1002 & 1022
C17
C21 - Third Carriage Lot 1003 & 1023
C17
C22 - Third Class Carriage Lots 1015, 1018, 1038 & 1053
C17
C79 - Third Class Carriage Lot 985, 826 & 932
Formerly A4 First class

Under Construction.  This project is definitely work in progress. If you would like to receive an email when I update these pages please contact me in the Carriage Shed.
