Great Western Railway Dean Era Coaches

warning: This page is best viewed with a wide screen (greater than 1200 pixels wide).
Here are a few coaches that I can't identify and would like your help please
Dimensions
Length x Width
Wheelbase		 Lewis Class.
Numbers
Conversions
1

Newspaper Van

 40' x 8'

6'4 Dean bogies

29'6 wheelbase

 LE7N 1017
HMRS		 This photo was published in Model Railway Constructor magazine and is captioned as being number 1017. BUT 1017 was a K4 which was built with only 2 pairs of double doors in the side. This design with 4 pairs of double doors is the same as a K14, but is has the shorter 6'4 bogies of the K4.
Exx

Centre Brake Composite

 48'approx. x 8'

6'4 Dean bogies

 CAE7N 3 compartments (1st or 2nd or a mixture), narrow brake/luggage, 4 3rd compartments
Dxx

Brake Third

 50'approx.

8'6 Dean bogies

 CEE7N or CEE7W
© Robert Brookman		 4 compartments, lav?, guard's compartment, large luggage compartment
Vxx

Passenger Brake Van

 31'approx.

4 wheels
19' wheelbase?

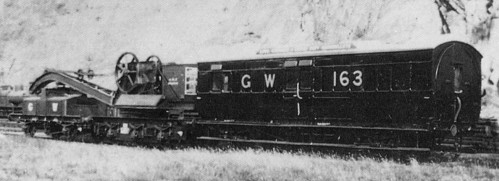

 LA9N ? Pilot Van 163 < Is this GWR or absorbed? Photo at Machynlleth ?

Under Construction.  This project is definitely work in progress. If you would like to receive an email when I update these pages please contact me in the Carriage Shed.
