Great Western Short Coaches

Normal Body Style, Single Arc Roof, Brake with 2 compartments



These styles of coach are classified by Lewis as LA9N and LA9S.

There was 1 LA9S design which was very short and only survived until 1908.
Lot 92 built at Saltney in 1871 22' long

12' wheelbase


R Spratt collection, 92
There were 2 LA9N designs each with 2 variants. They were all rebuilt from coaches built to diagram T38. Diagram T38 was a 4 compartment brake with the guards compartment in the centre of the coach. Conversion to T25 involved converting 2 compartments to a luggage area. The former compartment door of the end compartment was converted to a pair of double doors. The door to the other compartment and the windows were replaced with wooden panels so that the coach looked as if it had been originally built that way.

Conversion to T27 was very similar except that all of the doors and windows in the converted compartments were boarded up.

Diagrams T26 and T28 were T25 and T27 repectively with the guards lookout removed.

Diagrams T25 and T26 31' long

9'6" - 9'6" wheelbase


JN Slinn collection
Diagrams T27 and T28 31' long

9'6" - 9'6" wheelbase


JN Slinn collection

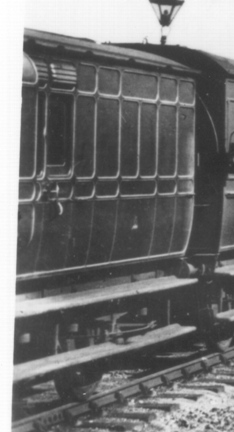

The photo to the left shows just the luggage and guard
part of a T27 coach.

The photo below shows another T27. Notice that the
panel nearest the camera is very narrow and used to be
the panel adjacent to the compartment window.
