The 1929 Cornish Riviera coaches were built to replace the Collett's 70' coaches of 1923.   Collett is reported to have decided that he didn't want any more 70' coaches as the overhang of the buffers on tighter curves concerned him.   Consequently the 1929 Cornish Riviera coaches were only 60' long with bow ends making them 61' 4½ long of the bow ends.   Since they were shorter than the 70' coaches it was possible to make them wider over the cornices and waist.   To accomodate the handles within the loading gauge they were recessed into the panels and doors.   Guard's compartment doors were flat and recessed into the bodyside as were the end doors on the sleeping and dining cars. The coaches rode on Collett 9' heavyweight bogies.   At first glace vehicles with a guard's compartment look very similar to the preceding designs, however, a closer look reveals almost flush glazing which enhances their appearance.

In addition to the 84 coaches for the complete Cornish Riviera, including the slip and detacted portions, and principal West of England services, 19 sleeping cars and 2 5 coach trains for general service were outshopped to this design in 1929 & 1930.

The Summer 1929 Formation of the Cornish Riviera Limited was:
Penzance Section D106, C59, C59, H37, H35, H36, E137, D106,  St Ives E138,  Falmouth E138,  Plymouth E138,  Weymouth Slip F23 & E138.

The Torbay Limited sets did not appear until September and October 1929 when the possible formation was:
D105, C59, C59, H37, H35, H36, E137, E137, D105.

Dimensions
Width over cornices 9' 2
Width over body at waist 9' 5¾
Width over handles 9' 7
Height to gutters 10' 7¼
Height to top of roof 12' 6
Height over ventilators 13' 0¼
Length over sides 60' 0
Length over bow ends 61' 4½
Wheelbase 53' 6

Diagram Dimensions
Length x Width
Wheelbase

Numbers
Conversions
C59

8 compartment corridor third
2 lavatories

As table 23 built in 1929

2 built in 1930

5256 to 5280

5355 & 5356

All were condemned between 1958 and 1963.
D105

4 compartment corridor brake third
1 lavatory

As table 12 built in 1929 5281 to 5292 All were condemned between 1958 and 1961.
D106

2 compartment corridor brake third
1 lavatory

As table 6 built in 1929 5293 to 5298 All were condemned between 1959 and 1962.
D108

3 compartment corridor brake third
1 lavatory

As table 4 built in 1930 5299 to 5302 All were condemned between 1959 and 1962.

Underframe of 5300 reused under G66 9005

E137

7 compartment corridor composite
2 lavatories

4 first class and 3 third class compartments

As table 13 built in 1929

4 built in 1930

6017, 6028, 6033, 6046, 6048, 6052, 6058, 6060, 6063, 6064, 6069, 6071, 6086

6163 to 6166

All were condemned between 1958 and 1962.
E138

6 compartment corridor brake composite
2 lavatories

2 first class and 4 third class compartments

As table 18 built in 1929 6087, 6088, 6095, 6097, 6098, 6100, 6107, 6108, 6118, 6120, 6121, 6124, 6134, 6147, 6148, 6151, 6152, 6153
E138 at Totnes 1957. R.Spratt collection
All were condemned between 1959 and 1962.
F23

6 compartment double slip composite
2 lavatories

2 first class and 4 third class compartments

As table 3 built in 1929 7898 to 7900 Slip gear removed in 1940/1
Reinstatement dates:
7898/9 - 12/1947, 7900 - 1952

All were condemned in 1959.

H35

Kitchen Car
1 kitchen, 1 pantry, 1 lumbar store and 1 lavatory

As table except width over body at waist 9'7 7 built in 1929 9594 to 9600 9594, 9595, 9598 for Cornish Riviera Ltd,
9596, 9597, 9599 for Torbay Ltd,
9600 was a shared spare.

9597 & 9598 fitted with 12'6 6 wheel bogies in 1939 & 1947 respectively

All were condemned between 1957 and 1961.

H36

Corridor Composite Diner

First class dining - 4 dining tables seating 4 and 4 dining tables seating 2

Thirds class dining - 7 dining tables seating 4 and 1 dining tables seating 3

As table except width over body at waist 9'7 6 built in 1929 9582 to 9587 9582, 9583, 9586 for Cornish Riviera Ltd, 9584, 9585, 9587 for Torbay Ltd.

All were condemned between 1959 and 1961.

H37

Corridor Third Diner

16 dining tables seating 4

As table except width over body at waist 9'7 6 built in 1929 9588 to 9593 9588, 9589, 9592 for Cornish Riviera Ltd, 9590, 9591, 9593 for Torbay Ltd.

All were condemned between 1961 and 1962.

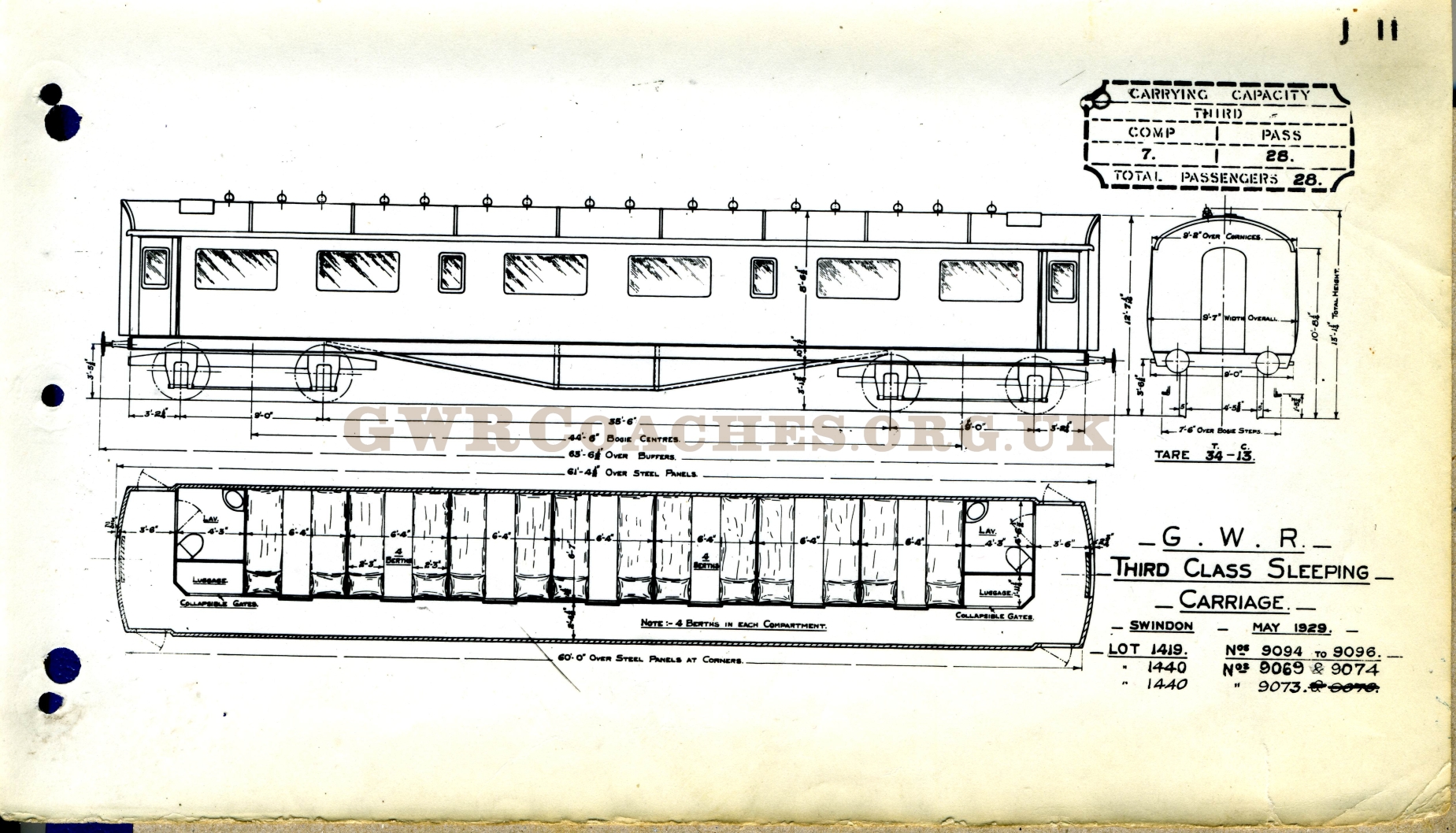

J11

7 compartment corridor third sleeper
2 lavatories

As table except width over body at waist 9'7 3 built in 1929

6 built in 1930

9094 to 9096

9069 & 9074

9071 to 9072 converted to J20 in 1951

All were condemned between 1960 and 1961.

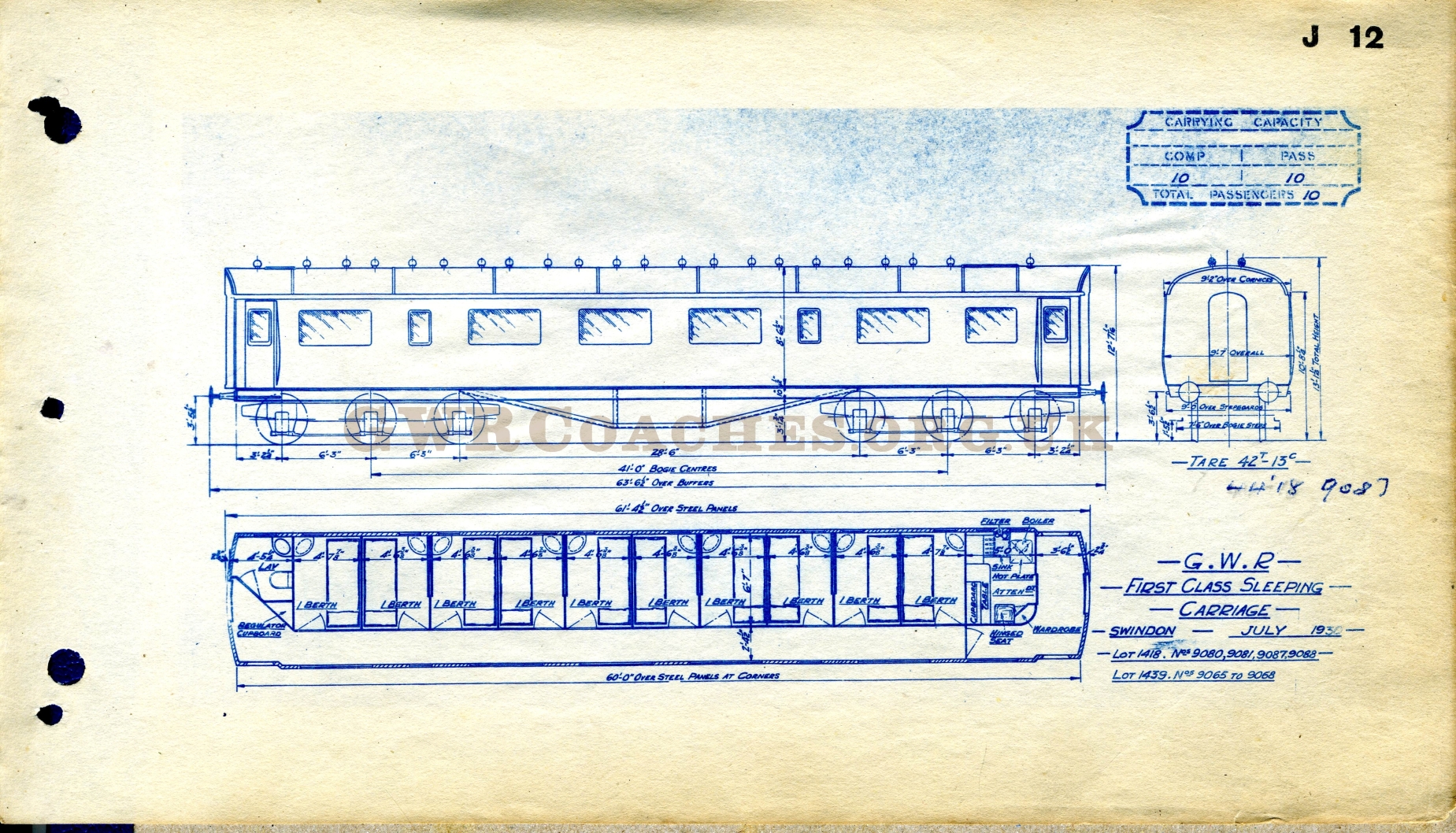

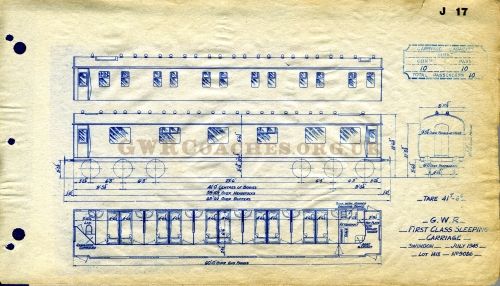

J12

10 compartment corridor first sleeper
1 lavatory
1 attendant's compartment

As table except width over body at waist 9'7

12'6 6 wheel bogie

5 built in 1929

4 built in 1930

9080, 9081, 9086 to 9088

9065 & 9068

All were condemned between 1960 and 1961.

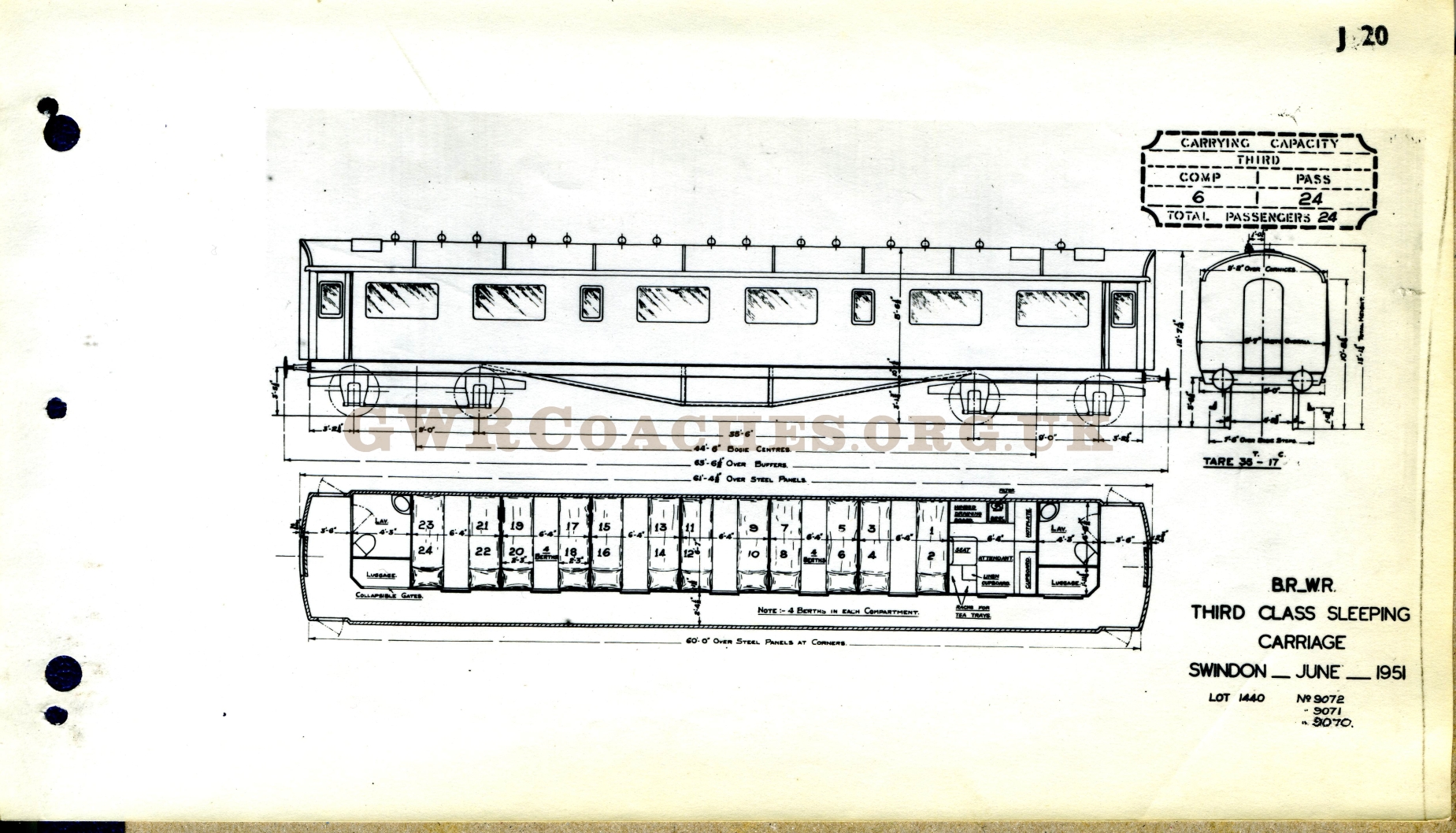

J20

6 compartment corridor third sleeper
2 lavatories
1 attendant's compartment

As table except width over body at waist 9'7 3 converted from J11 in 1951

6 built in 1930

9094 to 9096

9069 & 9074

All were condemned between 1960 and 1961.

Under Construction.  This project is definitely work in progress. If you would like to receive an email when I update these pages please contact me through the Carriage Sheds.
